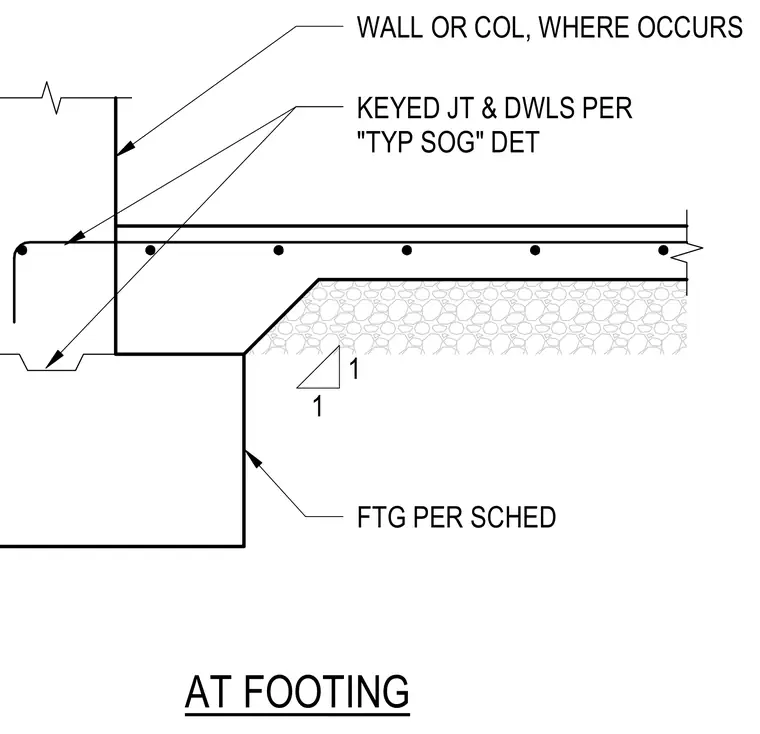

A concrete slab on grade bears directly on a concrete footing sized per schedule. A vertical wall or column occurs at the footing junction. Keyed joints and dowels are provided per typical slab on grade details.
1 1 FTG PER SCHED KEYED JT & DWLS PER "TYP SOG" DET WALL OR COL, WHERE OCCURS AT FOOTING
