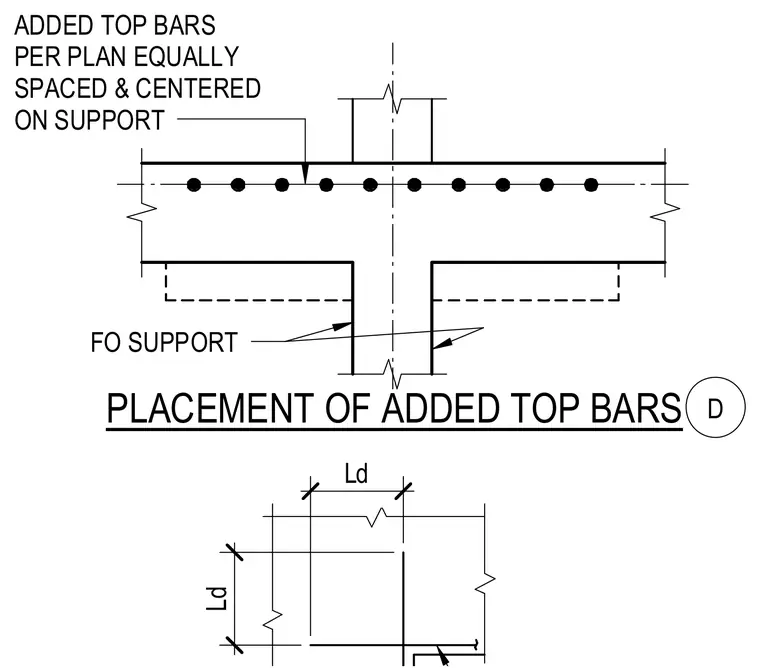

Additional top bars are spaced equally and centered on the support over the concrete element. Development length dimensions are indicated by Ld for proper anchorage. Support locations and face of support lines dictate the placement boundaries.
Ld Ld FO SUPPORT PLACEMENT OF ADDED TOP BARS ADDED TOP BARS PER PLAN EQUALLY SPACED & CENTERED ON SUPPORT D
