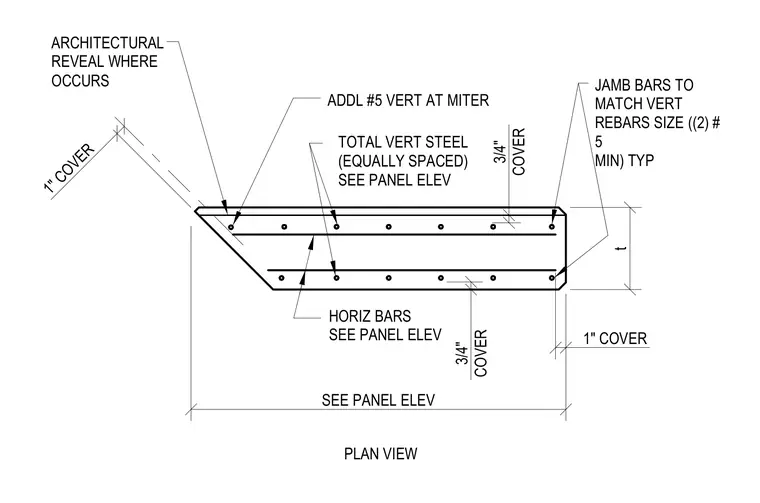

A double layer concrete wall with a mitered corner and architectural reveal contains horizontal reinforcing bars running continuously through the wall section with equal spacing sized per the panel elevation. Vertical reinforcing bars and jamb bars are placed with a minimum size of two number five bars typically. Concrete cover dimensions measure one inch at the mitered edge and three-quarters of an inch along the faces.
t SEE PANEL ELEV 1" COVER 1" COVER 3/4" COVER 3/4" COVER PLAN VIEW HORIZ BARS SEE PANEL ELEV ARCHITECTURAL REVEAL WHERE OCCURS JAMB BARS TO MATCH VERT REBARS SIZE ((2) # 5 MIN) TYP ADDL #5 VERT AT MITER TOTAL VERT STEEL (EQUALLY SPACED) SEE PANEL ELEV
