Eyebrow Steel Beam Connection at Floor Slab

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Facades / Cladding Floors / Slabs Decks Arches Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Rebar Splice / Development Deck Attachment

About this detail

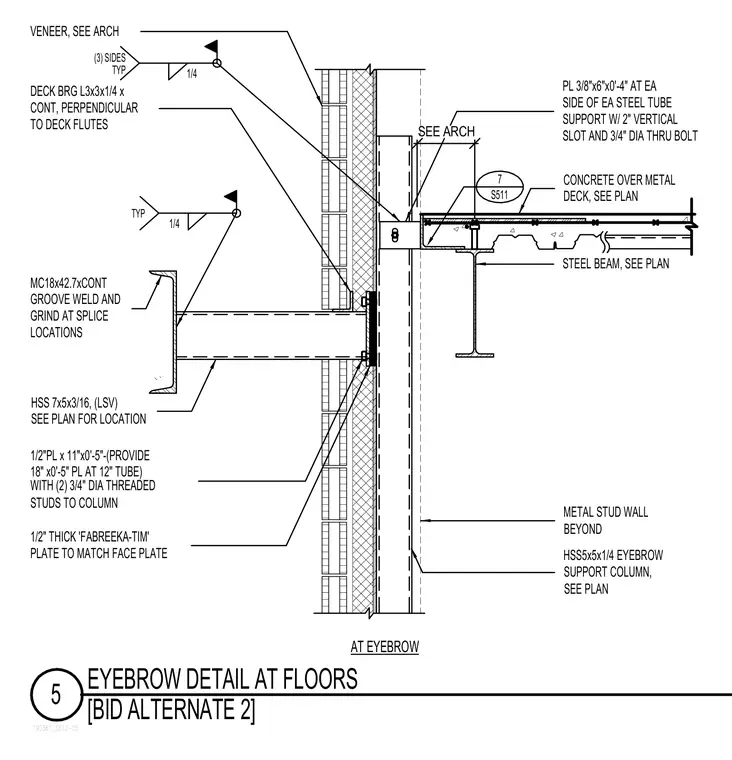

An HSS 7x5x3/16 structural steel tube supports an exterior eyebrow element, connecting back to an MC18x42.7 channel with a continuous groove weld ground smooth at splice locations. The tube bears against a 1/2-inch thick Fabreeka-TIM thermal break plate matching the face plate dimensions. A 1/2-inch plate measuring 11 inches by 0 feet 5 inches—extended to an 18-inch length at the 12-inch tube—attaches to the column with two 3/4-inch diameter threaded studs. Three-sided 1/4-inch fillet welds secure the connection. At the floor level, a continuous L3x3x1/4 angle provides vertical deck bearing perpendicular to the deck flutes, supporting the concrete over metal deck and steel beam assembly. A 3/8-inch by 6-inch by 0-foot 4-inch plate is welded to each side of the steel tube support, featuring a 2-inch vertical deck slot and a 3/4-inch diameter through bolt.
