Structural · S-64TVY

Beam Over Column Connection with Bearing Plate

Elements

Columns Beams Decks Connections / Plates

About this detail

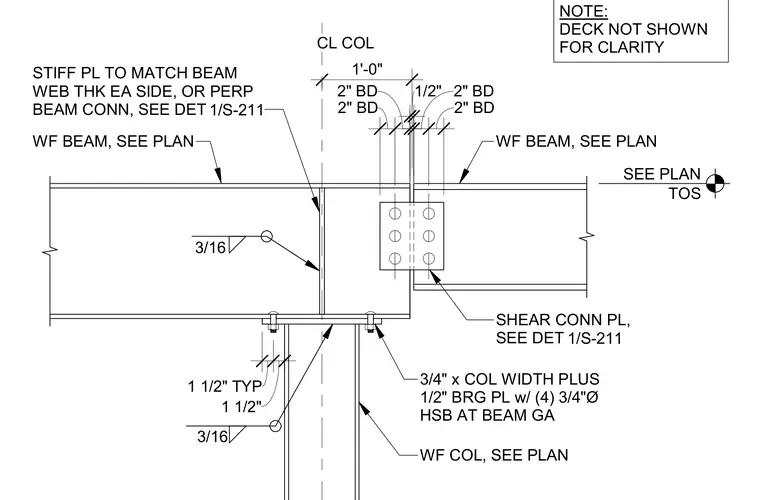

A wide-flange beam bears on a wide-flange column via a three-quarter-inch thick bearing plate sized to the column width plus one-half inch, secured with four three-quarter-inch diameter high-strength bolts at the beam gauge. A shear connection plate is welded to the beam web with a three-sixteenth-inch fillet weld and connected to the support per detail. Column stiffener plates matching the beam web thickness are provided on each side of the column web, welded with three-sixteenth-inch fillet welds, or integrated with a perpendicular beam connection per detail. A note indicates that the metal deck is omitted for clarity.
