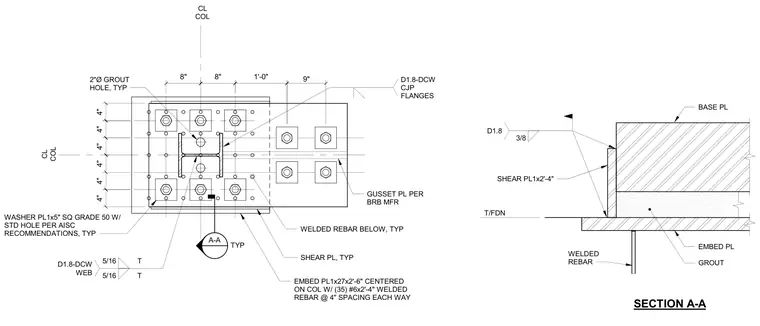

A buckling-restrained braced frame column base plate connection is anchored to a large embed plate. A thick embed plate measuring 1 inch by 27 inches by 2 feet 6 inches is centered on the column, featuring thirty-five welded number 6 rebar anchors at 4-inch spacing each way below the plate. The column base plate connects to the embed assembly with a shear plate and a gusset plate sized per the buckling-restrained brace manufacturer. Welds conform to D1.8 seismic welding standards, including complete joint penetration welds on the column flanges and 5/16-inch fillet welds on the web and shear plate. Square washer plates measuring 1 inch by 5 inches in Grade 50 steel are provided with standard holes per AISC recommendations. A typical 2-inch diameter grout hole is provided through the base plate, resting above a grout layer set upon the foundation.
T/FDN A-A 5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5" SQ GRADE 50 W/ STD HOLE PER AISC RECOMMENDATIONS, TYP EMBED PL1x27x2'-6" CENTERED ON COL W/ (35) #6x2'-4" WELDED REBAR @ 4" SPACING EACH WAY CL COL WELDED REBAR BELOW, TYP 2"Ø GROUT HOLE, TYP CL COL WELDED REBAR SHEAR PL1x2'-4" 3/8 D1.8 GROUT SECTION A-A EMBED PL BASE PL GUSSET PL PER BRB MFR TYP 8" 8" 1'-0" 9" SHEAR PL, TYP 4" 4" 4" 4" 4" 4"
