The furring partition consists of one layer of five-eighths inch impact-resistant gypsum wallboard on the exterior side all around. One-and-five-eighths-inch metal tracks are provided at the top and bottom of the partition and spaced eight feet on center maximum in between, twenty gauge minimum.

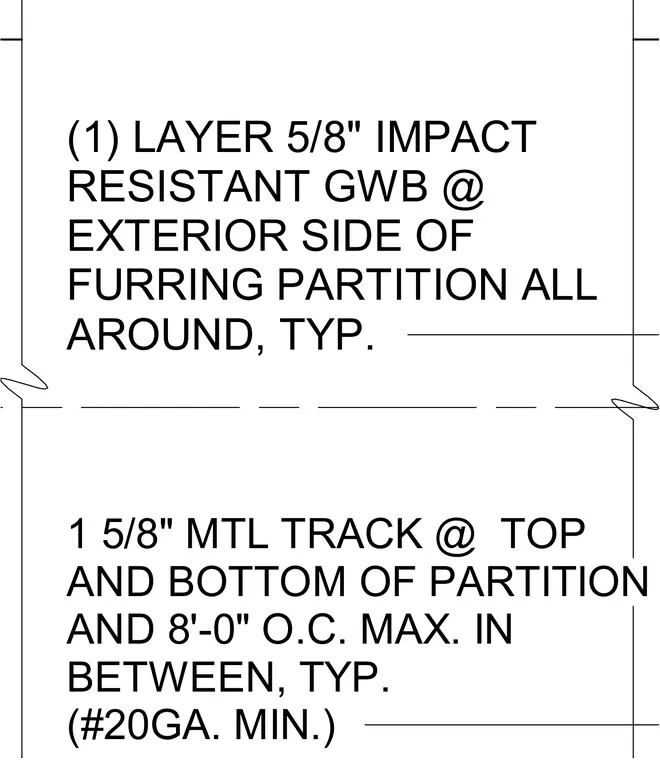

(1) LAYER 5/8" IMPACT RESISTANT GWB @ EXTERIOR SIDE OF FURRING PARTITION ALL AROUND, TYP. 1 5/8" MTL TRACK @ TOP AND BOTTOM OF PARTITION AND 8'-0" O.C. MAX. IN BETWEEN, TYP. (#20GA. MIN.)
