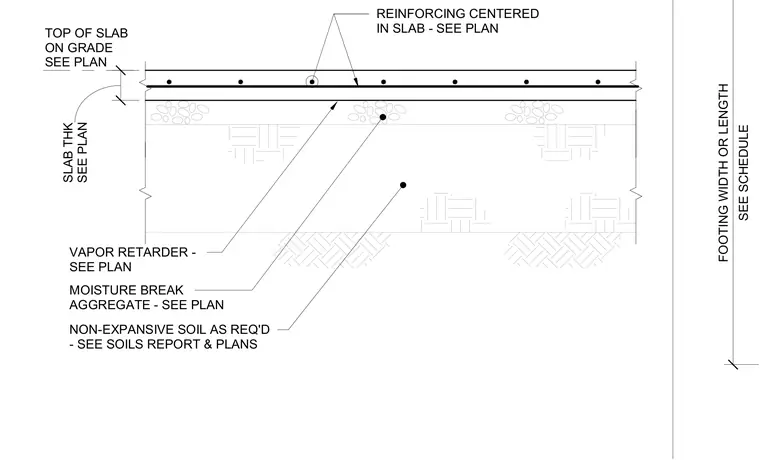

A standard concrete slab on grade assembly rests on a prepared subgrade. A non-expansive soil layer is provided as required by the soils report and structural plans. Over the subgrade, a moisture break aggregate layer supports a vapor retarder directly beneath the concrete slab. Reinforcing is centered within the slab thickness, with all dimensions and thicknesses sized per plan and footing schedules.
SEE SCHEDULE FOOTING WIDTH OR LENGTH TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
