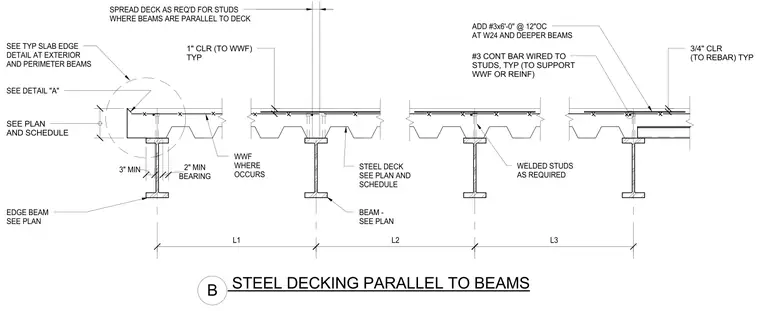

Steel decking is oriented parallel to wide-flange steel beams supporting a concrete floor slab. Steel deck flutes are spread as required to accommodate welded studs installed on the supporting beams. A continuous number three reinforcing bar is wired to the studs to support welded wire fabric or secondary reinforcement. Additional number three bars at six-foot-zero-inch spacing are provided at W24 and deeper beams. Clearances include one-inch to welded wire fabric and three-quarters of an inch to rebar, with minimum three-inch and two-inch bearing requirements at edge conditions.
ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS STEEL DECKING PARALLEL TO BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS L1 L2 L3 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . B .
