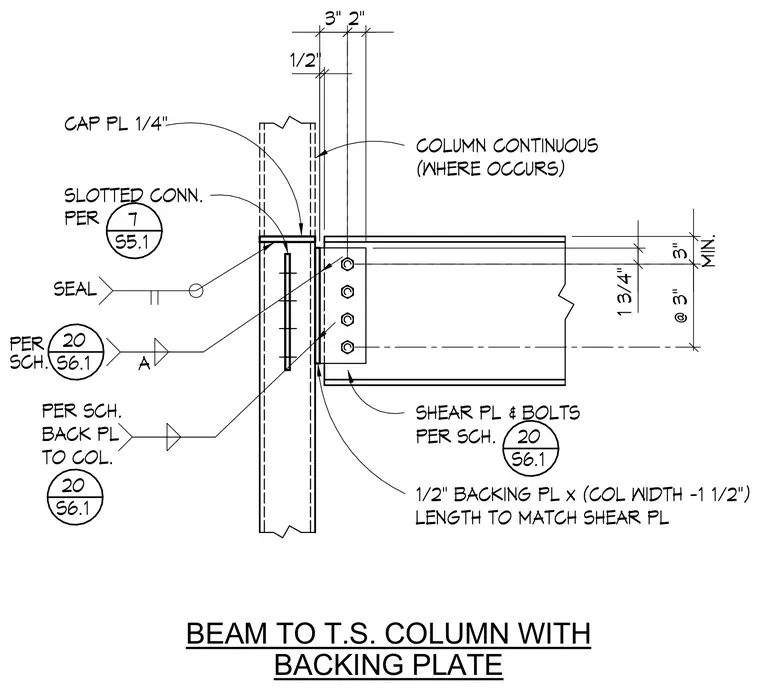

A structural steel beam frames into a continuous hollow structural section column using a shear plate and bolts sized per schedule. A one-half-inch backing plate, with a length matching the shear plate and a width equal to the column width minus one and one-half inches, is welded to the column. A one-quarter-inch cap plate is provided at the top of the column where applicable, and slotted connections are detailed per sheet S5.1.
1 3/4" @ 3" 3" 2" 1/2" 3" MIN. 7 S5.1 BACKING PLATE BEAM TO T.S. COLUMN WITH 20 S6.1 20 S6.1 20 S6.1 LENGTH TO MATCH SHEAR PL 1/2" BACKING PL x (COL WIDTH -1 1/2") PER SLOTTED CONN. PER SCH. SHEAR PL & BOLTS CAP PL 1/4" PER SCH. A COLUMN CONTINUOUS (WHERE OCCURS) PER SCH. BACK PL TO COL. SEAL
