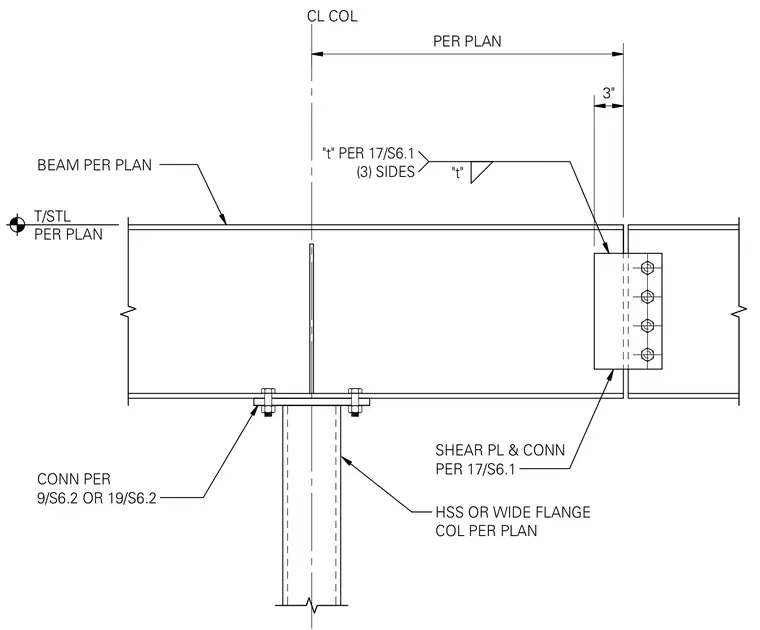

A structural steel beam connects to a hollow structural section or wide flange column per plan with a connection detailed on sheets 9/S6.2 or 19/S6.2. A beam splice is located near the column centerline with a shear plate and connection per detail 17/S6.1. The weld size 't' is specified per detail 17/S6.1 and welded on three sides with a three-inch dimension gap.
HSS OR WIDE FLANGE COL PER PLAN BEAM PER PLAN T/STL PER PLAN SHEAR PL & CONN PER 17/S6.1 CL COL CONN PER 9/S6.2 OR 19/S6.2 PER PLAN "t" "t" PER 17/S6.1 (3) SIDES 3" F 0 0 <> <> 0 0 T 0
