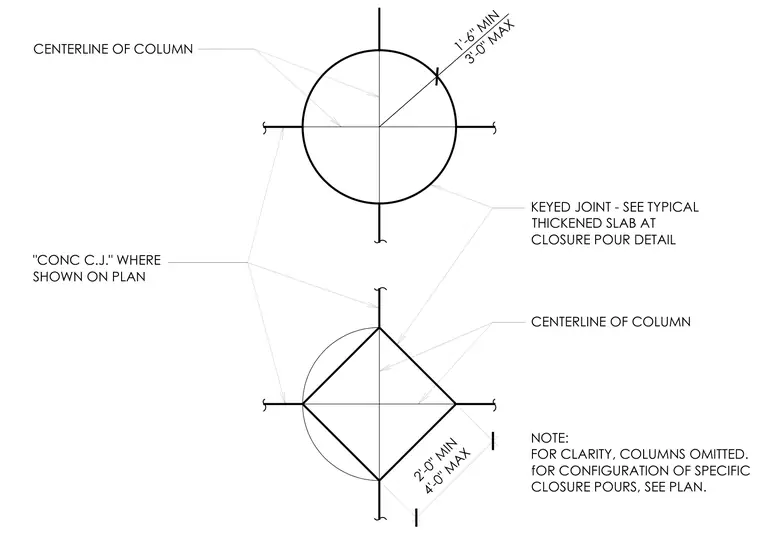

Keyed joints are located between one foot six inches minimum and three feet zero inches maximum from circular columns, and between two feet zero inches minimum and four feet zero inches maximum from square columns in plan view. Concrete construction joints are provided where shown on the structural plans. Columns are omitted for clarity.
CENTERLINE OF COLUMN "CONC C.J." WHERE SHOWN ON PLAN KEYED JOINT - SEE TYPICAL THICKENED SLAB AT CLOSURE POUR DETAIL 1'-6" MIN 3'-0" MAX NOTE: FOR CLARITY, COLUMNS OMITTED. fOR CONFIGURATION OF SPECIFIC CLOSURE POURS, SEE PLAN. CENTERLINE OF COLUMN 2'-0" MIN 4'-0" MAX C c 7 ) * C )
