A collector connection links a collector plate to a braced frame column centerline. The connection utilizes six one-inch diameter A490-N bolts with horizontal short-slotted holes provided at the top and bottom bolt locations, similar to detail 1/S-501. Four additional one-inch diameter A490-N bolts with vertical short-slotted holes are spaced equally along the beam depth. A continuous plate is detailed per detail 1/S-521, and the gusset plate is also referenced to detail 1/S-521. The collector plate connects to the column per detail 2/S-816, maintaining specified minimum edge distances and spacings.

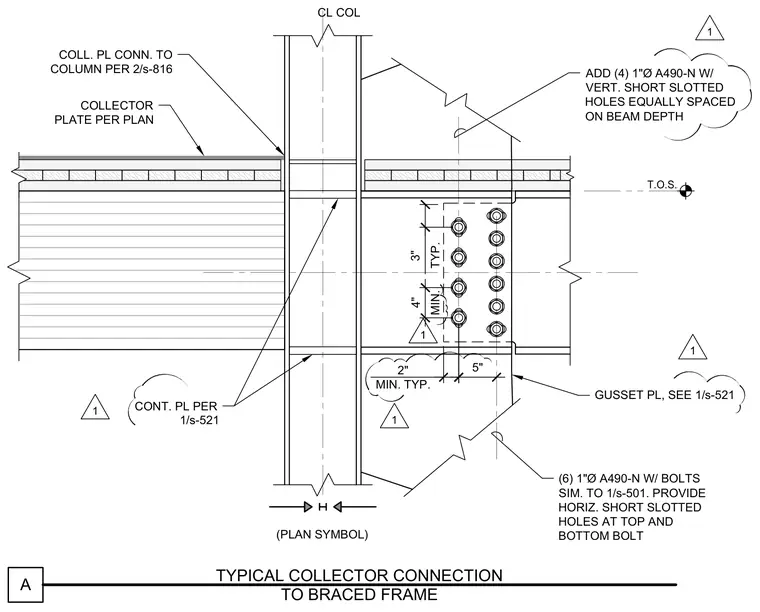

A TYPICAL COLLECTOR CONNECTION TO BRACED FRAME (PLAN SYMBOL) CL COL (6) 1"Ø A490-N W/ BOLTS SIM. TO 1/s-501. PROVIDE HORIZ. SHORT SLOTTED HOLES AT TOP AND BOTTOM BOLT ADD (4) 1"Ø A490-N W/ VERT. SHORT SLOTTED HOLES EQUALLY SPACED ON BEAM DEPTH CONT. PL PER 1/s-521 5" 2" MIN. TYP. 4" MIN. 3" TYP. COLLECTOR PLATE PER PLAN COLL. PL CONN. TO COLUMN PER 2/s-816 T.O.S. GUSSET PL, SEE 1/s-521 1 1 1 1 1
