Structural · S-63SQN

Gusset Plate Connection at Composite Metal Deck Slab

Materials

Concrete Reinforced Concrete Steel

Elements

Facades / Cladding Floors / Slabs Decks Trusses Bracing Connections / Plates Reinforcing

Connections

Gusset Plate Bracing Connection Welded Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

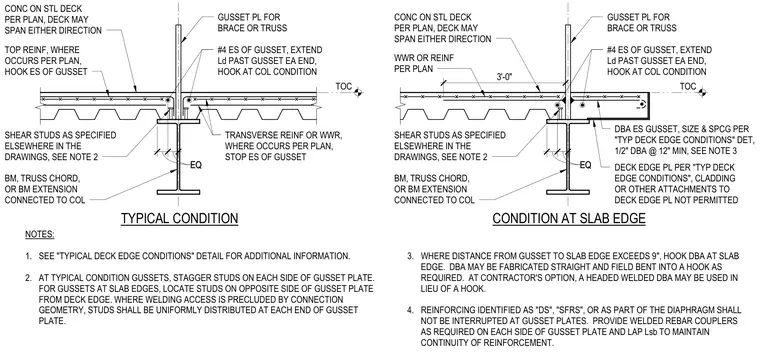

A gusset plate for a brace or truss extends through a concrete slab on a steel deck, shown at both a typical interior condition and a slab edge condition. The steel support beam, truss chord, or beam extension connects to the column below, with shear studs specified per drawings and staggered or positioned on opposite sides of the gusset plate per note requirements. Number four reinforcing bars run on each side of the gusset, extending development length past the gusset each end and hooking at column conditions. Additional slab edge conditions incorporate a deck edge plate, deformed bar anchors sized per details, and welded rebar couplers to maintain diaphragm or seismic reinforcement continuity.
