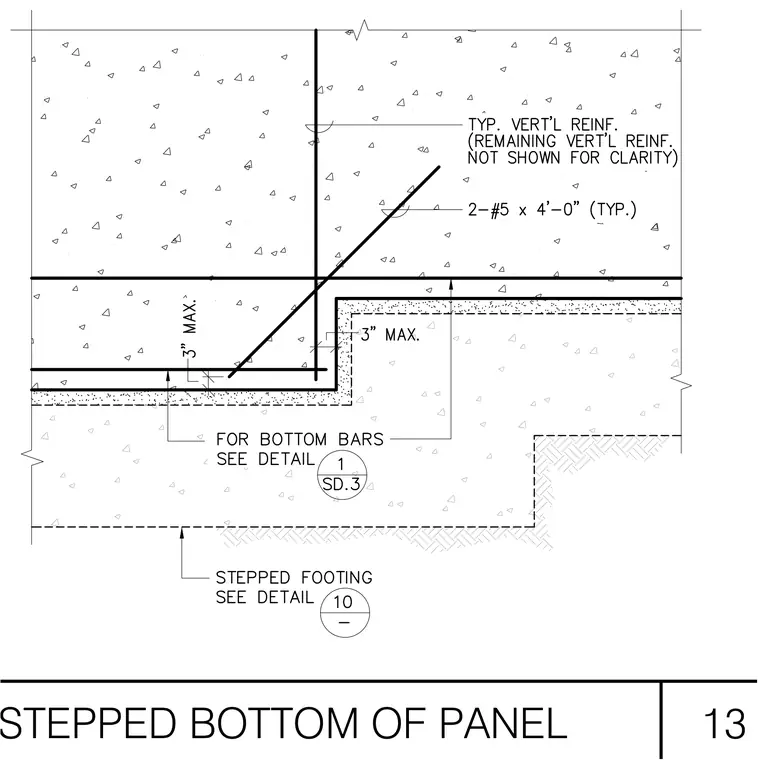

A concrete wall panel features a stepped bottom profile bearing over a stepped footing. Typical vertical reinforcement is provided with two number 5 bars at 4 feet 0 inches typical. Additional bottom bars and footing connections reference adjacent details on structural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
