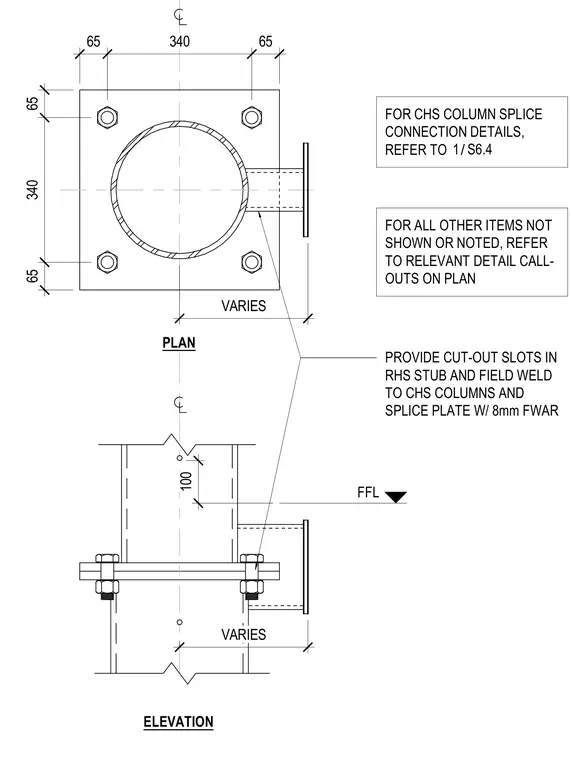

An RHS stub with cut-out slots is field welded to a CHS column and splice plate using an 8 millimeter fillet weld. The assembly includes bolted flange plates securing the circular hollow section column splice. Finished floor level is indicated adjacent to the column elevation.
65 340 65 65 340 65 FFL FOR CHS COLUMN SPLICE CONNECTION DETAILS, REFER TO VARIES VARIES FOR ALL OTHER ITEMS NOT SHOWN OR NOTED, REFER TO RELEVANT DETAIL CALL- OUTS ON PLAN PROVIDE CUT-OUT SLOTS IN RHS STUB AND FIELD WELD TO CHS COLUMNS AND SPLICE PLATE W/ 8mm FWAR PLAN ELEVATION / 1 S6.4 100
