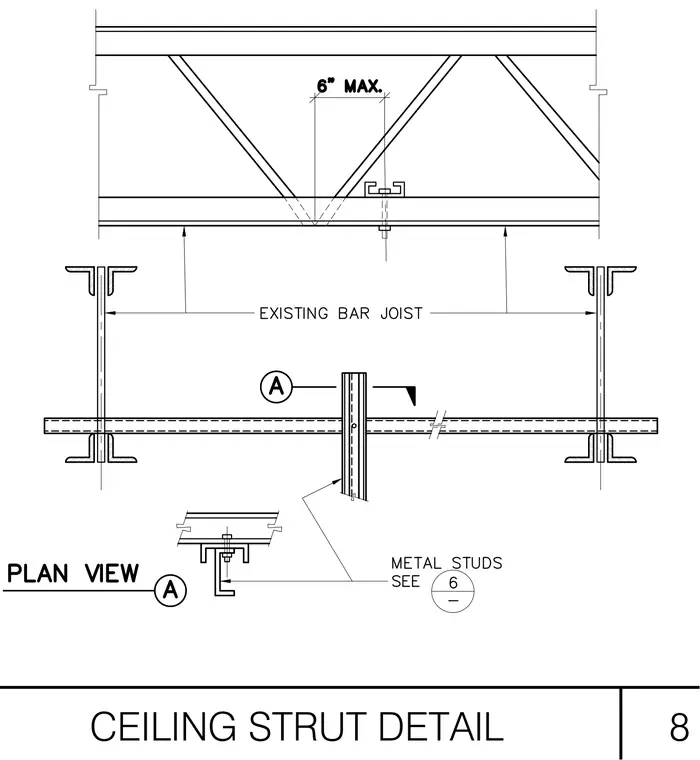

A ceiling strut is suspended from an existing open-web steel bar joist with a maximum offset of six inches. Metal studs span between structural supports and connect via a strut channel hanger assembly. A plan view provides the orientation of the metal studs relative to the strut channel connection.
