Structural · S-639GK

Foundation Wall and Pile Cap Detail

Materials

Elements

Columns Beams Walls Foundations / Footings

About this detail

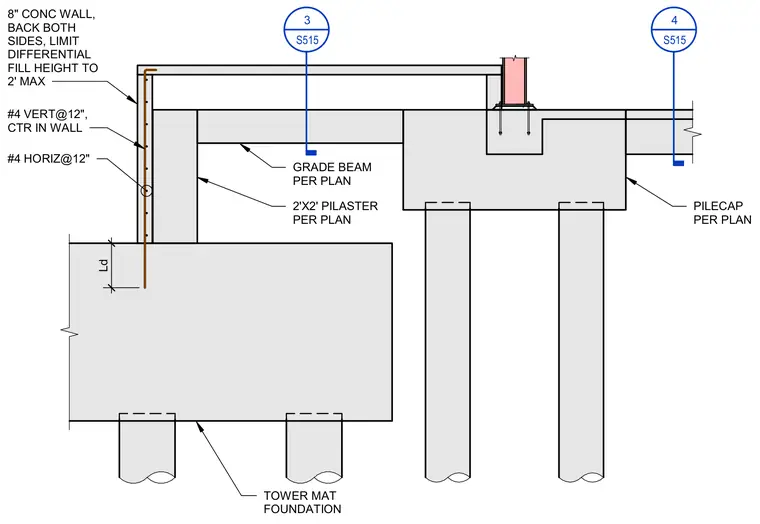

An eight-inch concrete wall is reinforced with number four vertical bars at twelve inches on center centered in the wall and number four horizontal bars at twelve inches on center, backed on both sides with a two-foot maximum differential fill height limit. The wall bears on a tower mat foundation with a specified development length, tying into a two-by-two-foot pilaster and a grade beam sized per plan. Adjacent to the grade beam, a pile cap supports a column base plate assembly with anchor bolts, bearing on deep foundation piles sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
