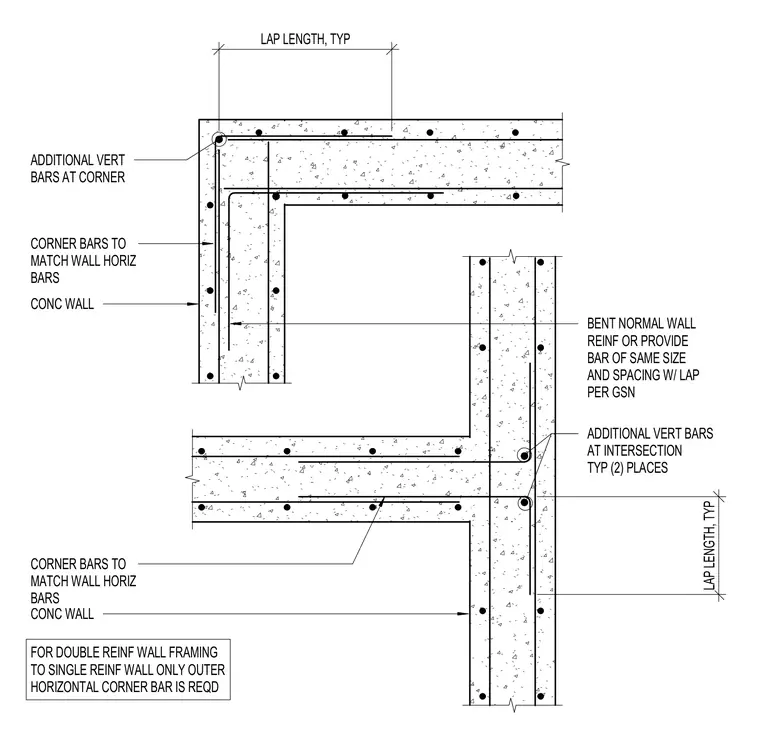

Concrete walls feature horizontal and vertical reinforcing bars arranged in a double-mat configuration at corners and intersections. Corner bars match the size and spacing of the wall horizontal bars, bent normally or provided as separate bars with standard lap lengths. Additional vertical bars are placed at the corner and in two locations at wall intersections. For transitions from double-reinforced walls to single-reinforced walls, only the outer horizontal corner bar is required.
ADDITIONAL VERT BARS AT CORNER CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL BENT NORMAL WALL REINF OR PROVIDE BAR OF SAME SIZE AND SPACING W/ LAP PER GSN ADDITIONAL VERT BARS AT INTERSECTION TYP (2) PLACES LAP LENGTH, TYP LAP LENGTH, TYP FOR DOUBLE REINF WALL FRAMING TO SINGLE REINF WALL ONLY OUTER HORIZONTAL CORNER BAR IS REQD
