Structural · S-636YN

Beam to Column Moment Connection with Stiffener Plates

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

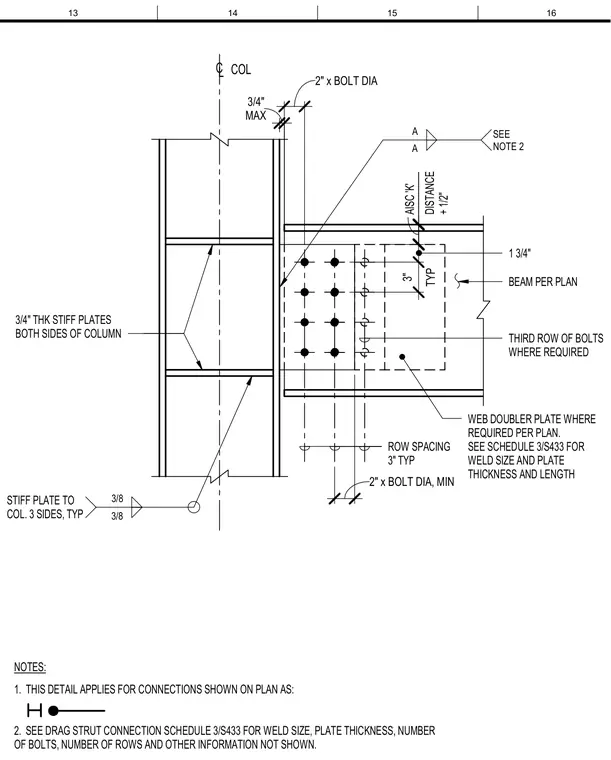

A steel beam frames into a column with three-side welded stiffener plates installed on both sides of the column web. A web doubler plate is included where required per plan, welded with specified fillet sizes. The beam flange and web connect using a bolted configuration with a typical three-inch row spacing. Additional third rows of bolts and specific plate thicknesses are coordinated per the drag strut connection schedule. Edge distances and spacing dimensions reference the AISC 'K' distance plus one-half inch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
