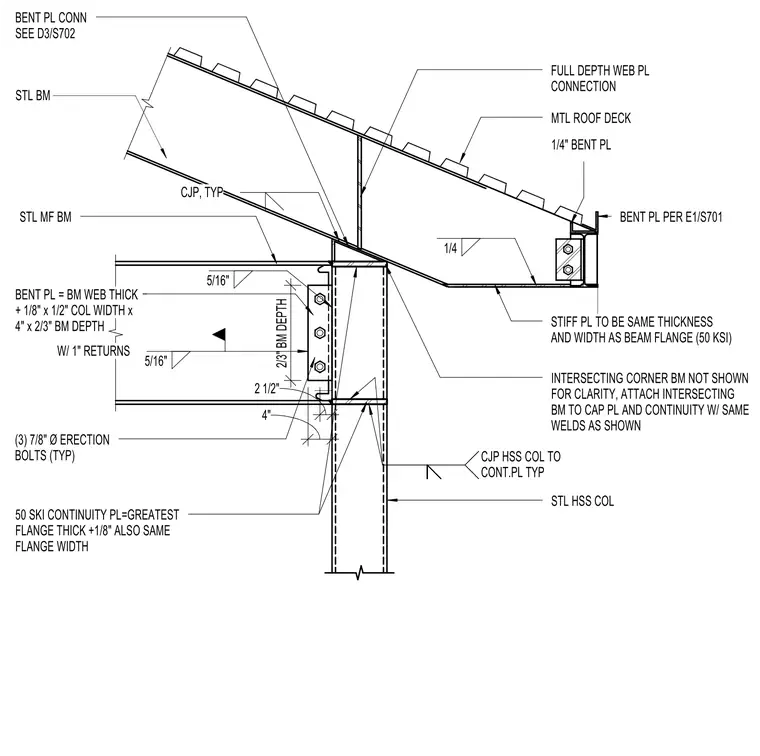

A steel moment frame beam intersects a hollow structural section steel column utilizing a full-depth web plate connection and continuity plates matching the 50 KSI flange thickness and width. Three seven-eighths inch diameter erection bolts secure the bent plate connection with one-inch returns, welded with five-sixteenths inch complete joint penetration welds typically. A stiffener plate matching the beam flange thickness and width is attached beneath the metal roof deck. Complete joint penetration welds connect the hollow structural section column to the continuity plates, while intersecting corner beams attach to the cap plate and continuity plates with matching welds.
STL BM MTL ROOF DECK FULL DEPTH WEB PL CONNECTION STIFF PL TO BE SAME THICKNESS AND WIDTH AS BEAM FLANGE (50 KSI) 1/4" BENT PL 1/4 BENT PL CONN SEE D3/S702 BENT PL PER E1/S701 INTERSECTING CORNER BM NOT SHOWN FOR CLARITY, ATTACH INTERSECTING BM TO CAP PL AND CONTINUITY W/ SAME WELDS AS SHOWN STL HSS COL STL MF BM BENT PL = BM WEB THICK + 1/8" x 1/2" COL WIDTH x 4" x 2/3" BM DEPTH (3) 7/8" Ø ERECTION BOLTS (TYP) 50 SKI CONTINUITY PL=GREATEST FLANGE THICK +1/8" ALSO SAME FLANGE WIDTH 2/3" BM DEPTH 2 1/2" 4" W/ 1" RETURNS 5/16" CJP, TYP CJP HSS COL TO CONT.PL TYP 5/16"
