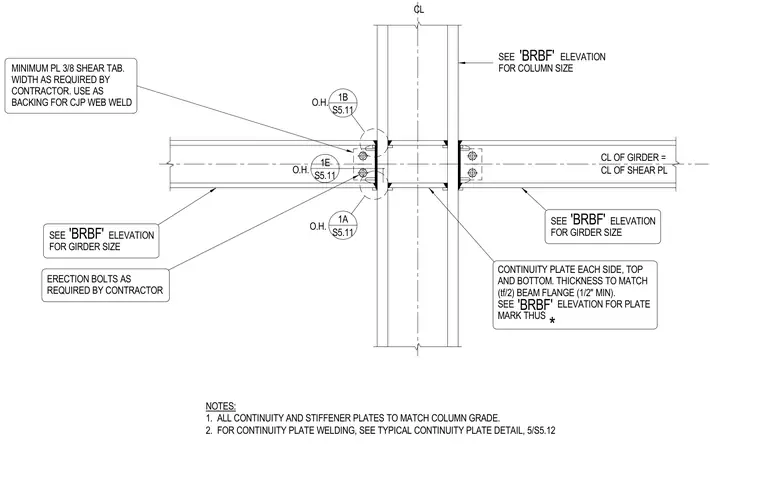

This structural steel connection joins steel girders to a wide-flange column within a braced frame system. Continuity plates are located on each side of the column web, top and bottom, sized to match half the beam flange thickness with a minimum thickness of one-half inch and matching the column grade. A shear tab with a minimum thickness of three-eighths of an inch is welded to the column and serves as a backing bar for a complete joint penetration web weld. Erection bolts are provided as required by the contractor for field assembly.
CL CL OF GIRDER = CL OF SHEAR PL * CONTINUITY PLATE EACH SIDE, TOP AND BOTTOM. THICKNESS TO MATCH (tf/2) BEAM FLANGE (1/2" MIN). SEE ELEVATION FOR PLATE MARK THUS MINIMUM PL 3/8 SHEAR TAB. WIDTH AS REQUIRED BY CONTRACTOR. USE AS BACKING FOR CJP WEB WELD O.H. O.H. SEE ELEVATION FOR COLUMN SIZE NOTES: 1. ALL CONTINUITY AND STIFFENER PLATES TO MATCH COLUMN GRADE. 2. FOR CONTINUITY PLATE WELDING, SEE TYPICAL CONTINUITY PLATE DETAIL, 5/S5.12 O.H. SEE ELEVATION FOR GIRDER SIZE SEE ELEVATION FOR GIRDER SIZE 'BRBF' 'BRBF' 'BRBF' 'BRBF' 1B S5.11 1E S5.11 1A S5.11 ERECTION BOLTS AS REQUIRED BY CONTRACTOR
