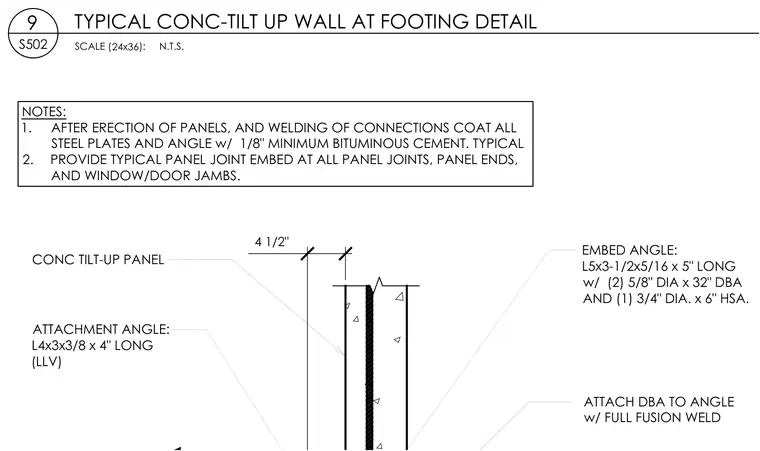

A concrete tilt-up wall panel connects to its footing using steel angles and dowel bars. The embed angle measures L5x3-1/2x5/16 by five inches long and is anchored with two 5/8-inch diameter by 32-inch deformed bar anchors and one 3/4-inch diameter by 6-inch headed stud anchor. An attachment angle measuring L4x3x3/8 by four inches long connects to the tilt-up panel, with deformed bar anchors attached to the angle via a full fusion weld. After erection and welding, all steel plates and angles are coated with a minimum 1/8-inch layer of bituminous cement. Panel joint embeds are specified at all panel joints, ends, and opening jambs.
ATTACHMENT ANGLE: L4x3x3/8 x 4" LONG (LLV) 4 1/2" EMBED ANGLE: L5x3-1/2x5/16 x 5" LONG w/ (2) 5/8" DIA x 32" DBA AND (1) 3/4" DIA. x 6" HSA. CONC TILT-UP PANEL ATTACH DBA TO ANGLE w/ FULL FUSION WELD SCALE ( ): 24x36 9 S502 TYPICAL CONC-TILT UP WALL AT FOOTING DETAIL N.T.S. NOTES: 1. AFTER ERECTION OF PANELS, AND WELDING OF CONNECTIONS COAT ALL STEEL PLATES AND ANGLE w/ 1/8" MINIMUM BITUMINOUS CEMENT. TYPICAL 2. PROVIDE TYPICAL PANEL JOINT EMBED AT ALL PANEL JOINTS, PANEL ENDS, AND WINDOW/DOOR JAMBS. ■£s A b A ■ b TT
