Structural · S-62N7N

Floor-to-Floor and Balloon Framing Details with Brick Veneer

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Facades / Cladding Roofs Floors / Slabs Decks Arches Connections / Plates Reinforcing

Connections

Deck Attachment

About this detail

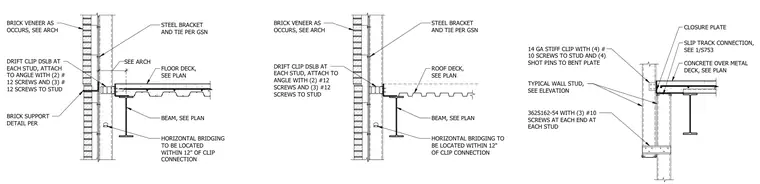

These structural details illustrate floor-to-floor and roof framing conditions with cold-formed steel framing and brick veneer. The assembly incorporates typical wall studs of size 362S162-54 secured with three number ten screws at each end, alongside a fourteen gauge stiff clip fastened with four number ten screws to the stud and four shot pins to a bent plate. Drift clips of type DSLB are attached at each stud using two number twelve screws to the angle and three number twelve screws to the stud. Horizontal bridging is located within twelve inches of the clip connection. Concrete over metal decks bear on structural steel beams sized per plan, with slip track connections and closure plates detailed as shown.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
