Structural · S-62K2R

Special Framing Force-Resisting System Collector Connector

Materials

Concrete Steel Metal (misc.)

Elements

Beams Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

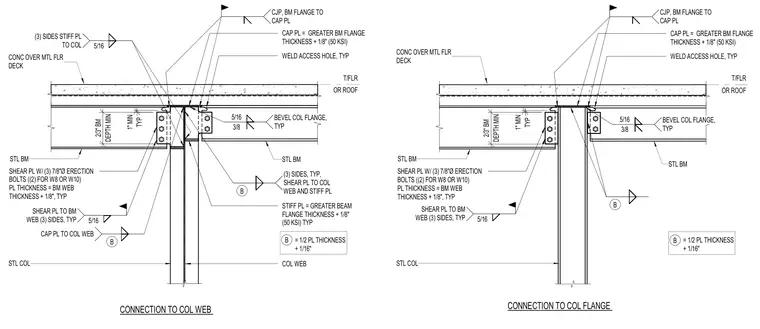

A steel beam frames into a steel column with connection options to both the column web and column flange. The connection utilizes a steel cap plate at the column top, sized to the greater beam flange thickness plus one-eighth inch with fifty ksi yield strength, welded to the beam flange with a complete joint penetration weld and featuring typical weld access holes. A shear plate with three seven-eighths inch diameter erection bolts connects to the beam web, welded with five-sixteenth inch fillets on three sides. Stiffener plates matching the beam flange thickness plus one-eighth inch are provided at the column web and connected with five-sixteenth inch fillet welds on three sides. Concrete over metal floor deck bears atop the assembly.
