A head-of-wall drift connection at levels 3 and 4 accommodates a three-quarter-inch deflection allowance. The assembly incorporates a Dietrich Maxtrak slotted deflection and drift track, or nested drift tracks, secured with two powder-actuated fasteners and two number 10-16 screws per stud. A 400S162-43 stud brace ties into the framing, with additional anchor details referencing sheet S801 and sheet S602 for half-inch diameter deformed bar anchors.

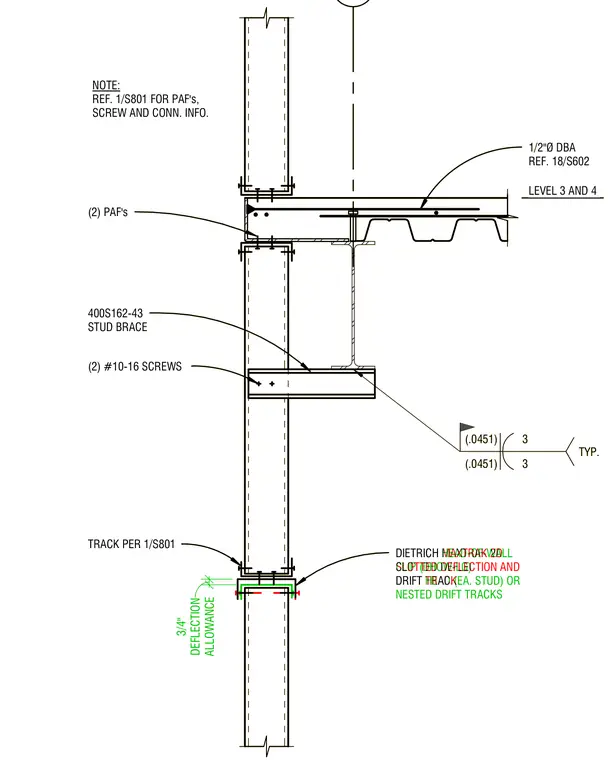

DIETRICH MAXTRAK 2D SLOTTED DEFLECTION AND DRIFT TRACK TRACK PER 1/S801 (.0451) 3 (.0451) 3 TYP. LEVEL 3 AND 4 (2) PAF's (2) #10-16 SCREWS NOTE: REF. 1/S801 FOR PAF's, SCREW AND CONN. INFO. 1/2"Ø DBA REF. 18/S602 400S162-43 STUD BRACE DIETRICH HEAD-OF-WALL CLIP (DHOW-LG) DRIFT HEAD (EA. STUD) OR NESTED DRIFT TRACKS TRACK PER 1/S801 (.0451) 3 (.0451) 3 TYP. LEVEL 3 AND 4 (2) PAF's (2) #10-16 SCREWS NOTE: REF. 1/S801 FOR PAF's, SCREW AND CONN. INFO. ALLOWANCE 3/4" DEFLECTION 1/2"Ø DBA REF. 18/S602 400S162-43 STUD BRACE
