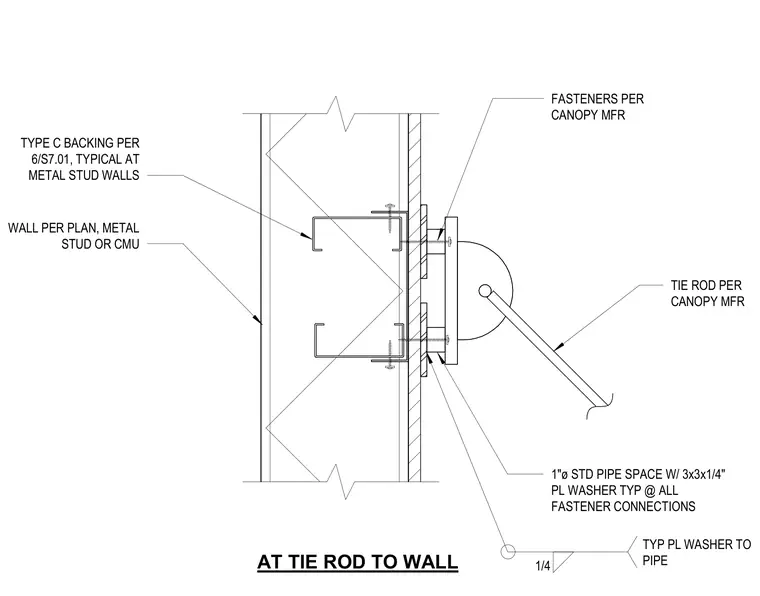

A canopy tie rod connects to an exterior wall constructed of metal studs or CMU with type C backing. The assembly uses a one-inch diameter standard pipe space with a three-by-three-by-quarter-inch plate washer at all fastener connections. Fasteners are installed per the canopy manufacturer requirements.
AT TIE ROD TO WALL TIE ROD PER CANOPY MFR 1"ø STD PIPE SPACE W/ 3x3x1/4" PL WASHER TYP @ ALL FASTENER CONNECTIONS FASTENERS PER CANOPY MFR WALL PER PLAN, METAL STUD OR CMU 1/4 TYP PL WASHER TO PIPE TYPE C BACKING PER 6/S7.01, TYPICAL AT METAL STUD WALLS
