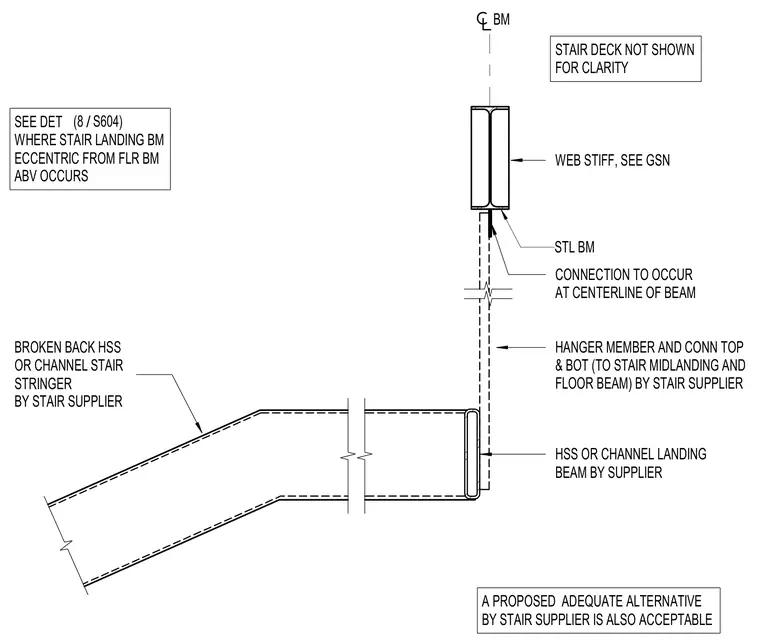

A hollow structural section or channel stair landing beam is supported by a hanger member connecting back to a structural steel floor beam above. The hanger member and its top and bottom connections are provided by the stair supplier, aligning with the centerline of the beam. A steel beam web stiffener is included as specified in the general structural notes. A broken back hollow structural section or channel stair stringer frames into the landing beam. When the stair landing beam is eccentric from the floor beam above, a separate detail reference applies.
STL BM WEB STIFF, SEE GSN BROKEN BACK HSS OR CHANNEL STAIR STRINGER BY STAIR SUPPLIER BM HSS OR CHANNEL LANDING BEAM BY SUPPLIER HANGER MEMBER AND CONN TOP & BOT (TO STAIR MIDLANDING AND FLOOR BEAM) BY STAIR SUPPLIER CONNECTION TO OCCUR AT CENTERLINE OF BEAM SEE DET WHERE STAIR LANDING BM ECCENTRIC FROM FLR BM ABV OCCURS / (8 S604) STAIR DECK NOT SHOWN FOR CLARITY A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE
