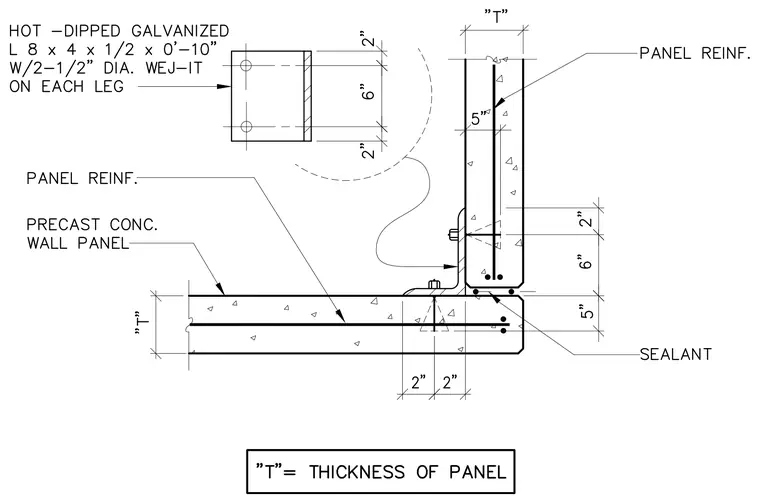

Precast concrete wall panels meet at a corner joined by a hot-dipped galvanized angle measuring eight inches by four inches by one-half inch and zero feet ten inches long. The angle connects to the panels using two one-half inch diameter Wej-It expansion anchors on each leg. Panel reinforcement runs continuously through the concrete thickness labeled "T". A sealant joint is provided at the exterior corner between the abutting precast panels.
