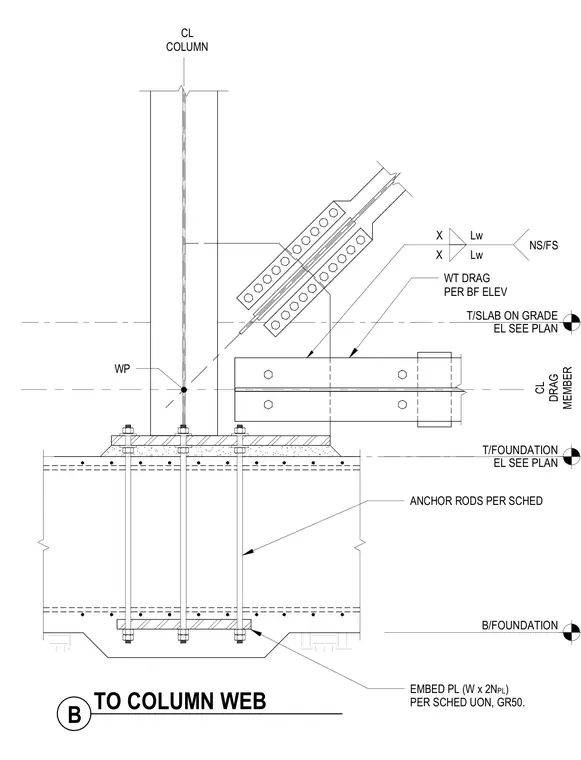

A WT-shape drag member frames into the web of a structural steel column above a concrete foundation. The column base plate sits on a grout pad and is secured by vertical anchor rods extending down through the foundation to a bottom embed plate. A diagonal brace gusset plate connects above the drag member, utilizing bolted connections on both sides. All anchor rods and embed plates conform to Grade 50 steel specifications as scheduled.
CL COLUMN EL SEE PLAN T/SLAB ON GRADE EL SEE PLAN T/FOUNDATION B/FOUNDATION CL DRAG MEMBER WP B TO COLUMN WEB ANCHOR RODS PER SCHED EMBED PL (W x 2N PL ) PER SCHED UON, GR50. WT DRAG PER BF ELEV X Lw X Lw NS/FS
