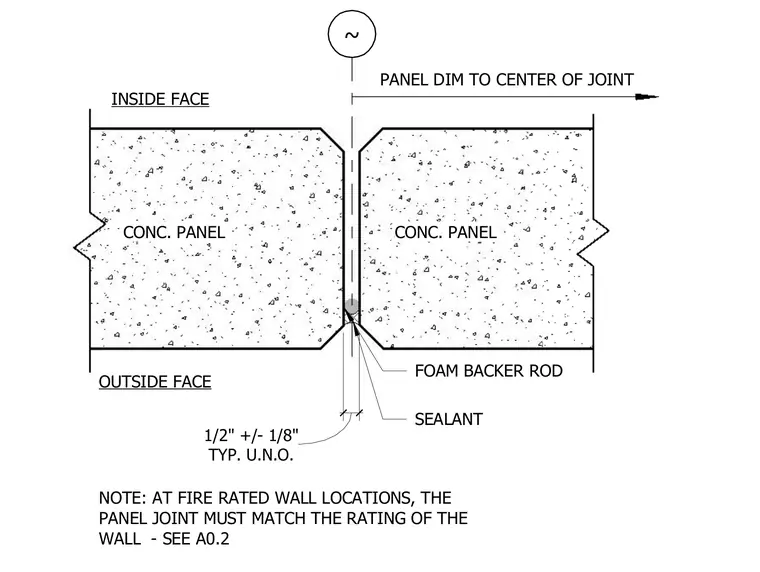

Adjacent concrete wall panels feature a vertical joint sealed with a foam backer rod and elastomeric sealant at the outside face. The joint width is maintained at one-half inch plus or minus one-eighth inch typically unless noted otherwise. Fire-rated wall locations require panel joints to match the wall rating.
INSIDE FACE ~ PANEL DIM TO CENTER OF JOINT OUTSIDE FACE CONC. PANEL FOAM BACKER ROD SEALANT CONC. PANEL TYP. U.N.O. 1/2" +/- 1/8" NOTE: AT FIRE RATED WALL LOCATIONS, THE PANEL JOINT MUST MATCH THE RATING OF THE WALL - SEE A0.2
