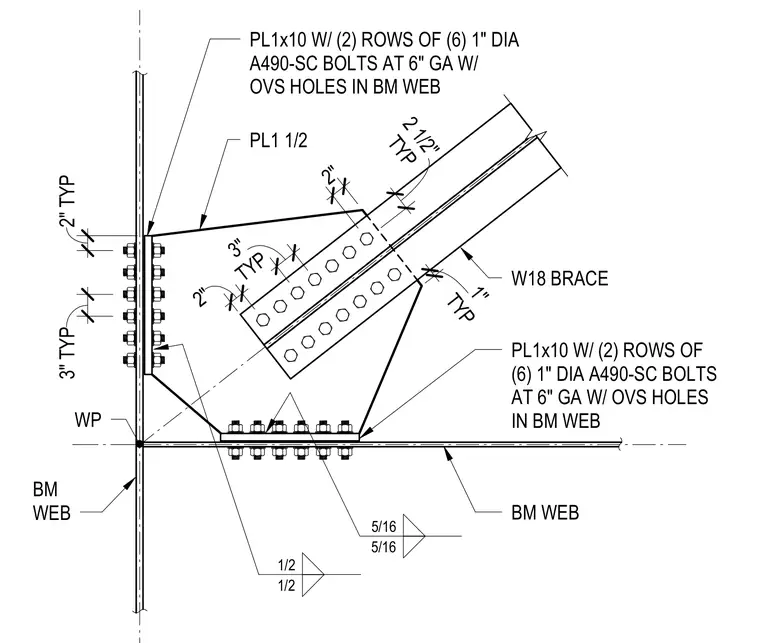

A W18 brace connects to a beam web using a one-and-a-half-inch gusset plate. The gusset plate features two rows of six 1-inch diameter A490-SC bolts at 6-inch gauge with oversized holes in the beam web. Fillet welds of 5/16-inch and 1/2-inch size secure the connection assembly at the working point.
W18 BRACE PL1x10 W/ (2) ROWS OF (6) 1" DIA A490-SC BOLTS AT 6" GA W/ OVS HOLES IN BM WEB PL1x10 W/ (2) ROWS OF (6) 1" DIA A490-SC BOLTS AT 6" GA W/ OVS HOLES IN BM WEB PL1 1/2 BM WEB BM WEB 2" TYP 3" TYP 5/16 5/16 WP 1/2 1/2 TYP 1" 2" 2" TYP 3" TYP 2 1/2"
