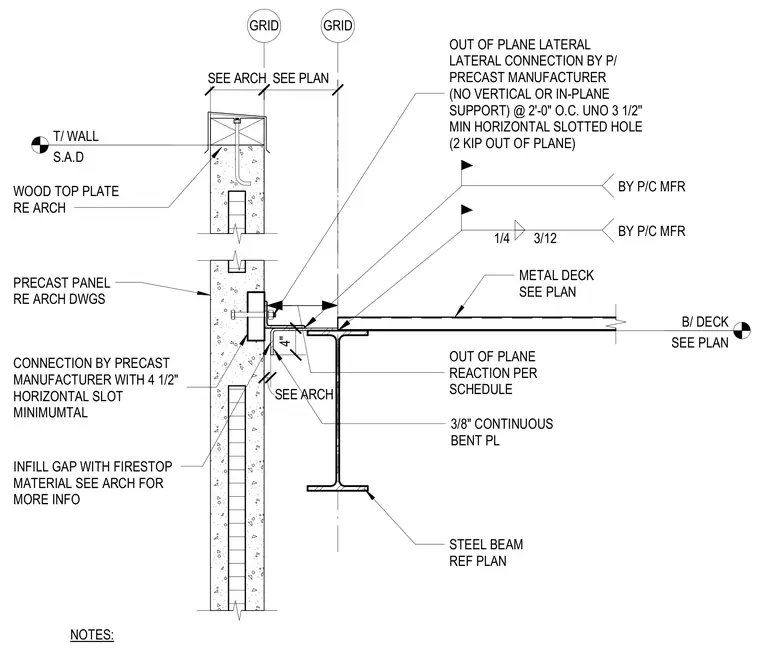

A steel beam supports the metal deck as specified on plan, with a three-eighths-inch continuous bent plate provided by the precast manufacturer. The lateral connection provides out-of-plane support only, leaving vertical and in-plane support unconstrained, featuring a three-and-a-half-inch minimum horizontal slotted hole spaced at two feet on center unless otherwise noted. A firestop material infills the gap between the deck and panel. The precast panel features a wood top plate referenced from the architectural drawings.
GRID GRID T/ WALL S.A.D METAL DECK SEE PLAN B/ DECK SEE PLAN SEE PLAN CONNECTION BY PRECAST MANUFACTURER WITH 4 1/2" HORIZONTAL SLOT MINIMUMTAL PRECAST PANEL RE ARCH DWGS INFILL GAP WITH FIRESTOP MATERIAL SEE ARCH FOR MORE INFO 1/4 3/12 BY P/C MFR OUT OF PLANE LATERAL LATERAL CONNECTION BY P/ PRECAST MANUFACTURER (NO VERTICAL OR IN-PLANE SUPPORT) @ 2'-0" O.C. UNO 3 1/2'' MIN HORIZONTAL SLOTTED HOLE (2 KIP OUT OF PLANE) STEEL BEAM REF PLAN WOOD TOP PLATE RE ARCH SEE ARCH 4" NOTES: 3/8" CONTINUOUS BENT PL BY P/C MFR OUT OF PLANE REACTION PER SCHEDULE SEE ARCH
