Structural · S-5ZFV7

Reinforcing Bar Welding

Materials

Metal (misc.)

Elements

Reinforcing

Connections

Welded Connection

About this detail

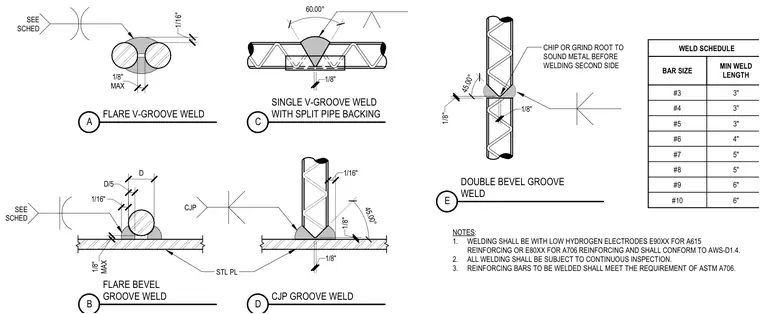

Standard structural details for reinforcing bar welding show five joint configurations including flare v-groove, single v-groove with split pipe backing, flare bevel groove, cjp groove, and double bevel groove welds. Steel plates and reinforcing bars connect with specified root openings and bevel angles such as forty-five and sixty degrees. A weld schedule correlates bar sizes from number three through number ten with corresponding minimum weld lengths. Notes specify low hydrogen electrodes type e90xx for a615 reinforcing or e80xx for a706 reinforcing conforming to aws-d1.4, continuous inspection of all welding, and the requirement that welded reinforcing bars meet astm a706.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
