Structural · S-5ZENM

Typical Steel Girder Bearing on Steel Column

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Walls Roofs Decks Arches Expansion / Control Joints Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment Embed Plate Expansion / Slip Connection

About this detail

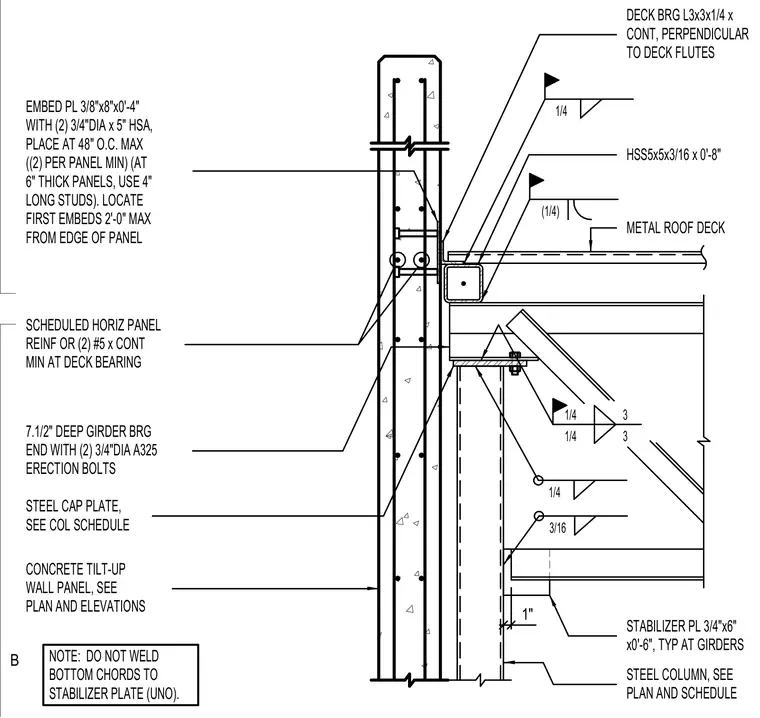

A seven-and-a-half-inch deep steel girder bears on a steel column and connects with two three-quarter-inch diameter A325 erection bolts. An HSS5x5x3/16 structural steel tube acts as a support member, welded with quarter-inch fillets, while a continuous angle supports the metal roof deck perpendicular to its flutes. A stabilizer plate measuring three-quarters by six inches is welded with three-sixteenths and quarter-inch fillets to the column and left unwelded to the girder bottom chords unless noted otherwise. The concrete tilt-up wall panel features scheduled horizontal reinforcement and embeds anchored with three-quarter-inch diameter by five-inch stud anchors spaced at forty-eight inches on center maximum.
