Column Base Plate and Foundation Footing Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

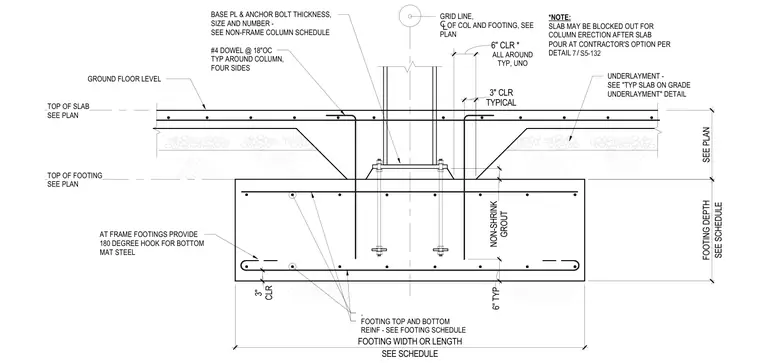

A column base plate and anchor bolt assembly bears on a concrete foundation footing, with surrounding slab-on-grade construction. The column centers on the footing with base plate thickness, size, and number of anchor bolts sized per the non-frame column schedule. Non-shrink grout is placed beneath the base plate. The concrete footing includes top and bottom reinforcing steel sized per the footing schedule, with a three-inch clear cover typically and one-hundred-eighty-degree hooks provided for bottom mat steel at frame footings. Number four dowels are placed at eighteen inches on center typically around the column on all four sides. The slab-on-grade features an underlayment layer and may be blocked out for column erection after the slab pour at the contractor's option per detail seven on sheet S5-132.
