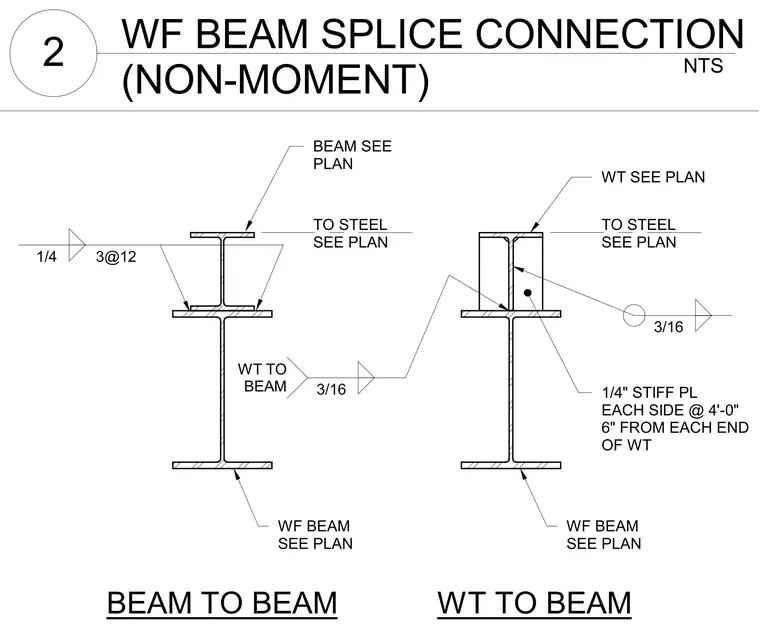

Two wide flange steel beams are joined in a non-moment splice configuration using WT sections sized per plan. A one-quarter inch fillet weld connects the components, supplemented by three-sixteenth inch welds at the WT to beam connection. One-quarter inch stiffener plates are placed on each side at four-foot intervals, beginning six inches from each end of the WT section. All steel sizes and specifications are sized per plan.
BEAM TO BEAM WT TO BEAM WF BEAM SEE PLAN WF BEAM SEE PLAN BEAM SEE PLAN TO STEEL SEE PLAN 1/4" STIFF PL EACH SIDE @ 4'-0" 6" FROM EACH END OF WT TO STEEL SEE PLAN WT SEE PLAN 3/16 3/16 WT TO BEAM 1/4 3@12 NTS 2 WF BEAM SPLICE CONNECTION (NON-MOMENT)
