Structural · S-5YZC8

Bottom Flange Lateral Brace Detail

Materials

Concrete Steel

Elements

Beams Decks Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

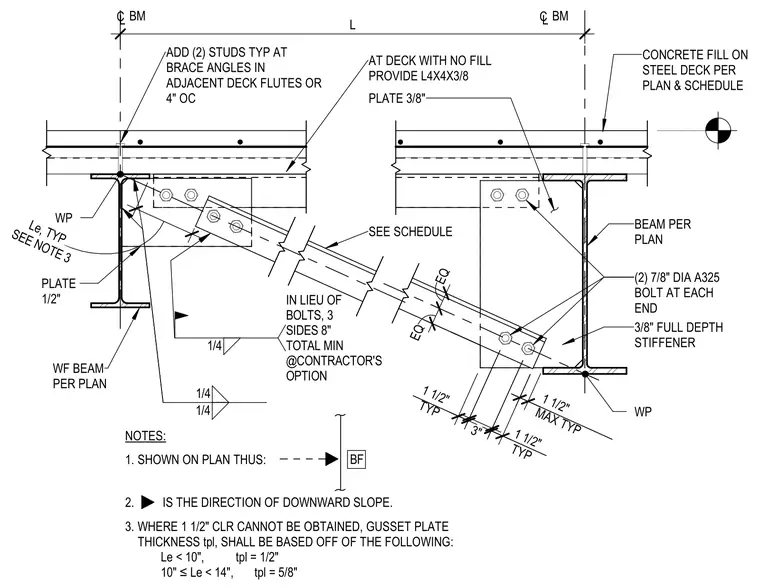

A bottom flange lateral brace connection is framed between wide-flange steel beams supporting a concrete fill on steel deck assembly. The diagonal brace member is connected via gusset plates welded with quarter-inch fillet welds and bolted using two seven-eighths-inch diameter A325 bolts at each end, with an option for three-sided fillet welding totaling eight inches minimum at the contractor's discretion. Additional shear studs are added typically at brace angles in adjacent deck flutes or at four inches on center. A three-eighths-inch full-depth stiffener is provided at the beam web where the deck has no fill, accompanied by an L4x4x3/8 angle. Gusset plate thicknesses are governed by edge distance requirements defined in the accompanying drawing notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
