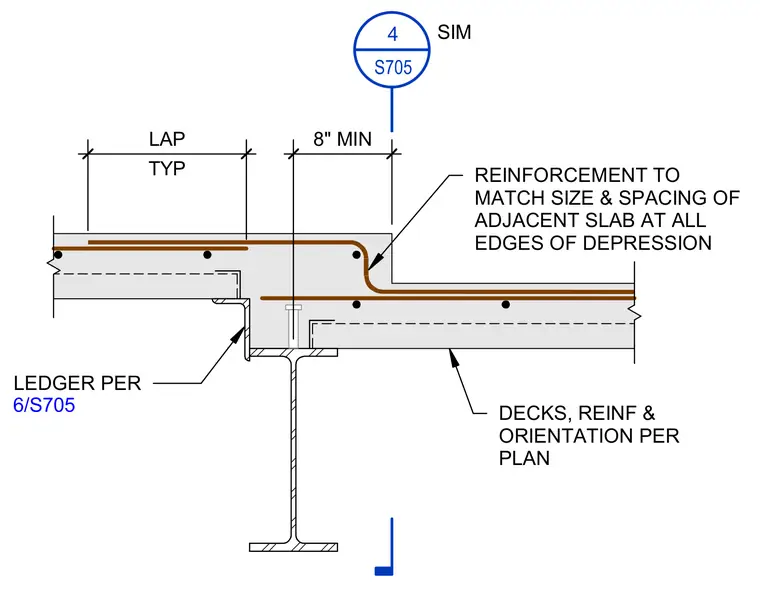

A structural concrete slab features a depression supported by a wide-flange steel beam and a ledger per detail 6/S705. The depressed slab section requires reinforcing bars matching the size and spacing of the adjacent slab at all edges with an eight-inch minimum typical lap. Metal decks, reinforcement, and orientation follow the structural plans.
TYP LAP 8" MIN LEDGER PER REINFORCEMENT TO MATCH SIZE & SPACING OF ADJACENT SLAB AT ALL EDGES OF DEPRESSION 4 S705 DECKS, REINF & ORIENTATION PER PLAN SIM 6/S705
