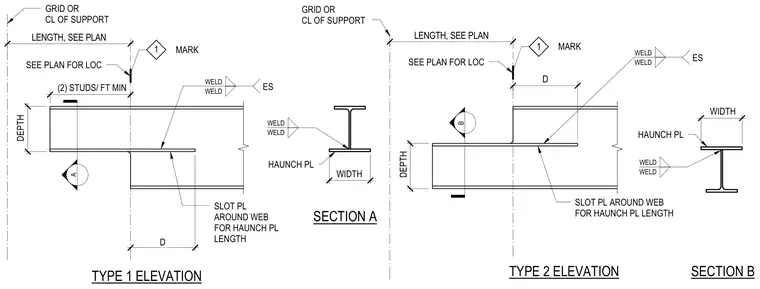

Haunched steel beam details show structural steel members with welded haunch plates and slotted webs for length adjustments. Type 1 and Type 2 elevations indicate stud spacing at a minimum of two studs per foot and designate grid or centerline of support dimensions. Cross-sections illustrate the haunch plate width and fillet weld configurations on each side. Slot plates fit around the web for the specified haunch plate length.
A B 1 LENGTH, SEE PLAN GRID OR CL OF SUPPORT 18 7/8" D SEE PLAN FOR LOC 23 1/2" (2) STUDS/ FT MIN SLOT PL AROUND WEB FOR HAUNCH PL LENGTH 13 1/4" DEPTH ES WELD WELD TYPE 1 ELEVATION MARK 12" WIDTH WELD WELD HAUNCH PL SECTION A TYPE 2 ELEVATION 1 GRID OR CL OF SUPPORT SEE PLAN FOR LOC SLOT PL AROUND WEB FOR HAUNCH PL LENGTH DEPTH ES WELD WELD MARK 13 1/4" D 12" WIDTH HAUNCH PL WELD WELD SECTION B LENGTH, SEE PLAN
