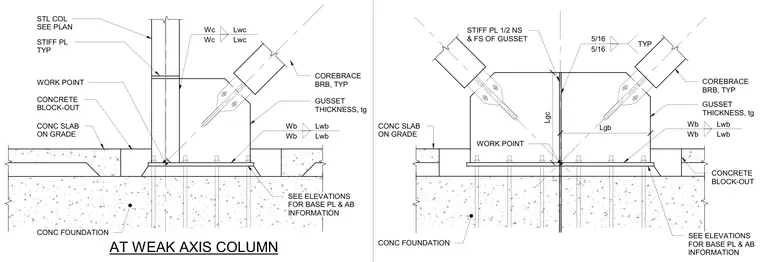

A structural steel column bears on a concrete foundation through a base plate within a concrete block-out below a slab on grade. A buckling-restrained brace frames into a gusset plate welded to the column and base assembly. Stiffener plates are welded with five-sixteenths inch fillet welds on the near side and far side of the gusset plate. Base plate and anchor bolt information is coordinated with the structural elevations.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL TYP WORK POINT CONC FOUNDATION COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb Wc Lwc Wc Lwc AT WEAK AXIS COLUMN SEE ELEVATIONS FOR BASE PL & AB INFORMATION CONC SLAB ON GRADE CONCRETE BLOCK-OUT STIFF PL 1/2 NS & FS OF GUSSET CONC FOUNDATION WORK POINT 5/16 5/16 TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION Lgb Lgc
