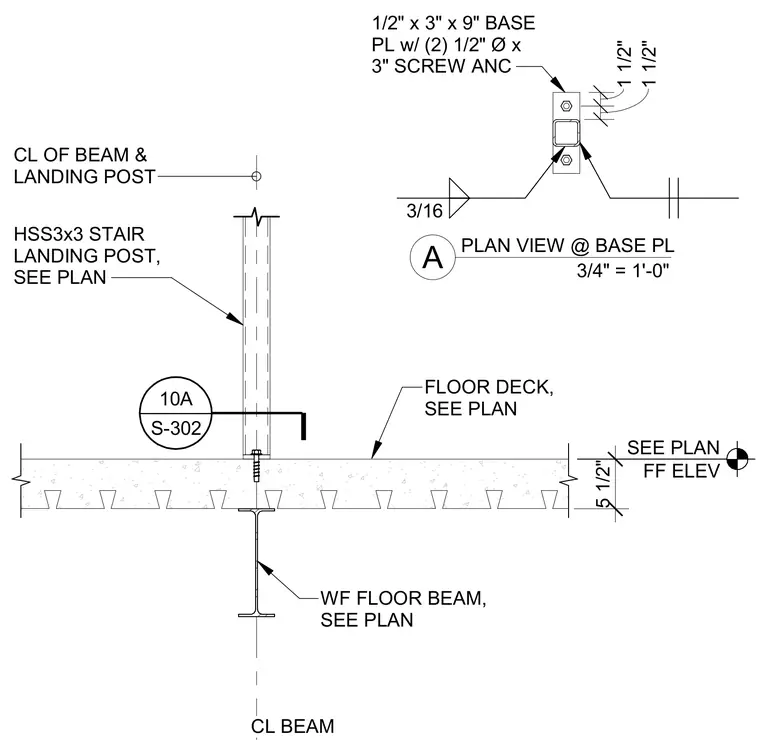

An HSS 3x3 stair landing post is anchored to a concrete-filled floor deck and wide-flange floor beam assembly. The post terminates at a 1/2-inch by 3-inch by 9-inch base plate secured with two 1/2-inch diameter by 3-inch screw anchors. A 3/16-inch fillet weld connects the post to the base plate. The assembly aligns with the centerline of the supporting floor beam sized per plan.
SEE PLAN FF ELEV FLOOR DECK, SEE PLAN WF FLOOR BEAM, SEE PLAN 5 1/2" CL BEAM 10A S-302 _______________ HSS3x3 STAIR LANDING POST, SEE PLAN CL OF BEAM & LANDING POST A 3/4" = 1'-0" PLAN VIEW @ BASE PL 1 1/2" 1 1/2" 3/16 1/2" x 3" x 9" BASE PL w/ (2) 1/2" Ø x 3" SCREW ANC
