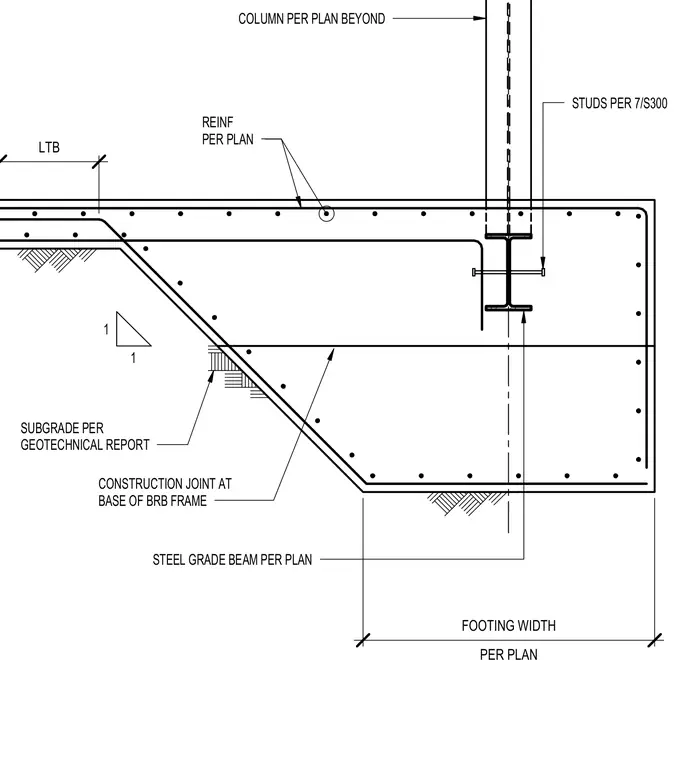

A structural steel grade beam is embedded within a reinforced concrete footing and thickened slab zone. Shear studs welded to the steel section tie the member into the surrounding concrete foundation. Reinforcement sizing and footing dimensions are scheduled per plan over a subgrade prepared according to geotechnical recommendations. A construction joint is detailed at the base of the buckling-restrained braced frame.
LTB COLUMN PER PLAN BEYOND STUDS PER 7/S300 STEEL GRADE BEAM PER PLAN SUBGRADE PER GEOTECHNICAL REPORT CONSTRUCTION JOINT AT BASE OF BRB FRAME REINF PER PLAN 1 1 PER PLAN FOOTING WIDTH
