Structural · S-5YEDB

Roof Safety Tie-Back Support Detail at Glulam Structure

Materials

Timber / Wood

Elements

Columns Beams Roofs Anchors / Embeds Connections / Plates Reinforcing

Connections

Timber / Mass-Timber Connection

About this detail

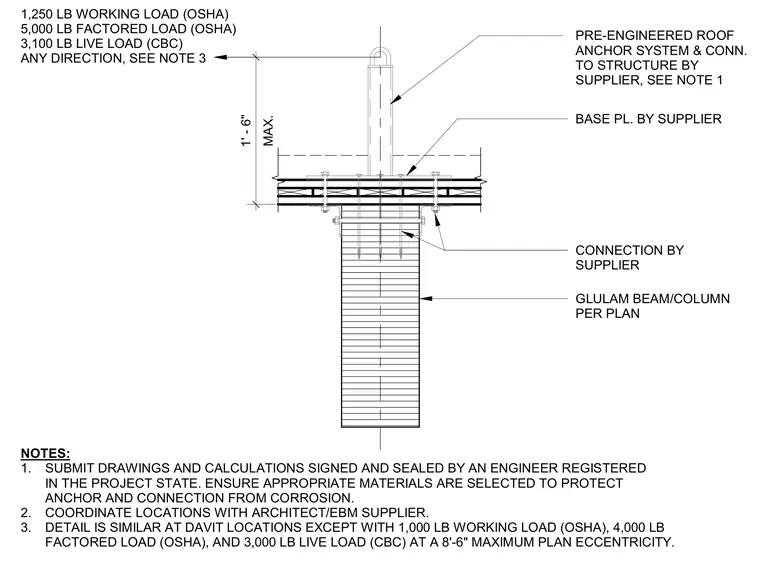

A pre-engineered roof anchor system connects to a supporting glulam beam or column per plan. The assembly features a supplier-provided base plate anchored to the roof structure with connection hardware sized per supplier specifications. A maximum vertical height of one foot six inches is maintained for the anchor loop above the roof deck. Design loads include one thousand two hundred fifty pounds working load and five thousand pounds factored load for OSHA compliance, along with three thousand one hundred pounds live load for the California Building Code. Shop drawings and engineering calculations signed and sealed by a registered state engineer are required prior to installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
