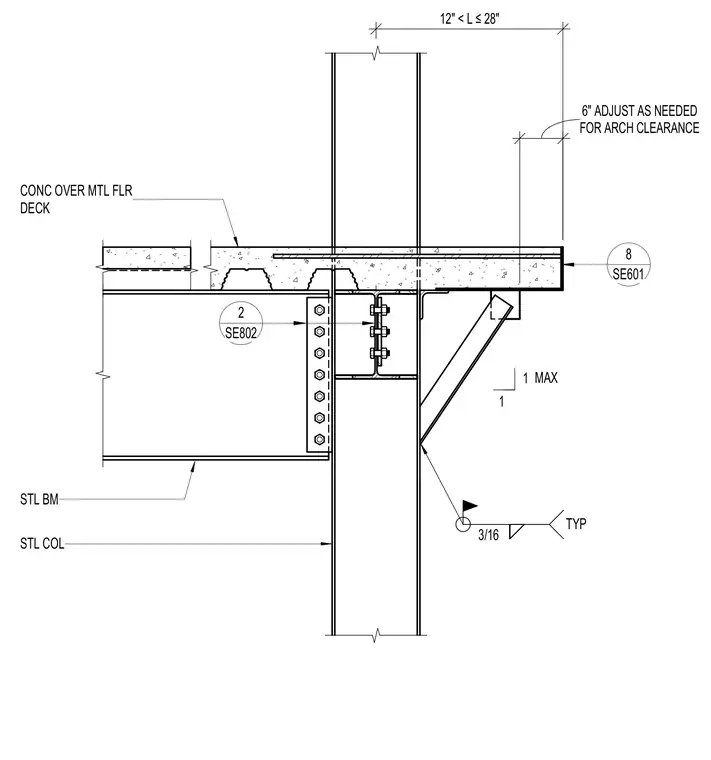

A concrete slab over metal floor deck frames around a steel column flange with a bolted beam connection. A steel beam connects to the steel column web using a bolted shear tab with multiple bolts. At the slab edge, an overhang extends between twelve and twenty-eight inches, with a six-inch adjustment as needed for architectural clearance. A diagonal kicker plate supports the edge condition, welded with a three-sixteenths inch fillet weld typical.
STL COL STL BM CONC OVER MTL FLR DECK 1 1 MAX 12" < L ≤ 28" 2 SE802 8 SE601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED 3/16 TYP
