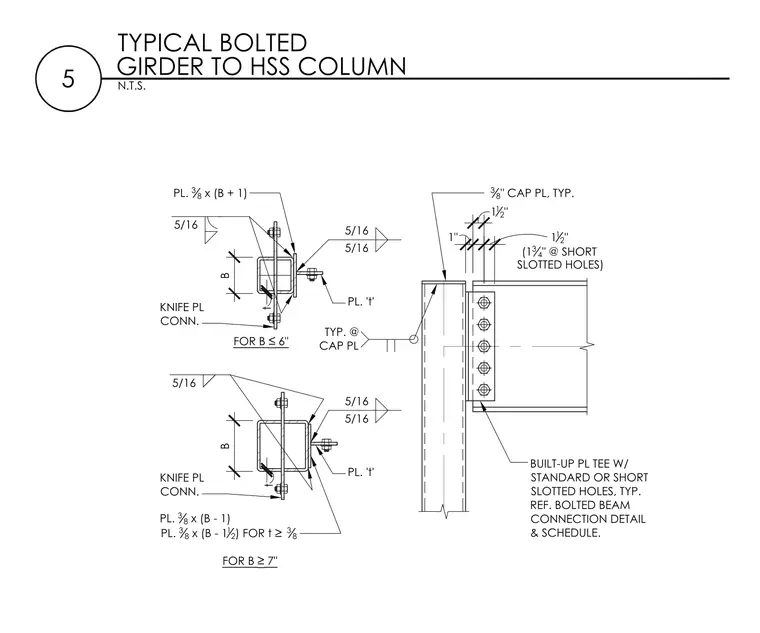

This structural connection detail shows a girder framed into a hollow structural section column using a built-up plate tee with standard or short slotted holes. A three-eighths-inch cap plate is welded to the top of the column with five-sixteenth-inch fillet welds typical at the cap plate. Knife plate connections are detailed for varying column widths with sizing formulas for plates based on dimension B and thickness t. Edge distances and bolt spacings are specified with one inch, one-and-a-half-inch, and one-and-three-quarter-inch dimensions for short slotted holes. Five-sixteenth-inch fillet welds secure the connection components as indicated in the plan and elevation views.
5 TYPICAL BOLTED GIRDER TO HSS COLUMN N.T.S. 1" 1 1 2 " 1 1 2 " (1 3 4 " @ SHORT SLOTTED HOLES) BUILT-UP PL TEE W/ STANDARD OR SHORT SLOTTED HOLES, TYP. REF. BOLTED BEAM CONNECTION DETAIL & SCHEDULE. 3 8 " CAP PL, TYP. FOR B ≤ 6" FOR B ≥ 7" B B t t PL. 3 8 x (B + 1) PL. 't' PL. 't' PL. 3 8 x (B - 1) PL. 3 8 x (B - 1 1 2 ) FOR t ≥ 3 8 KNIFE PL CONN. KNIFE PL CONN. 5/16 5/16 5/16 5/16 5/16 5/16 TYP. @ CAP PL
