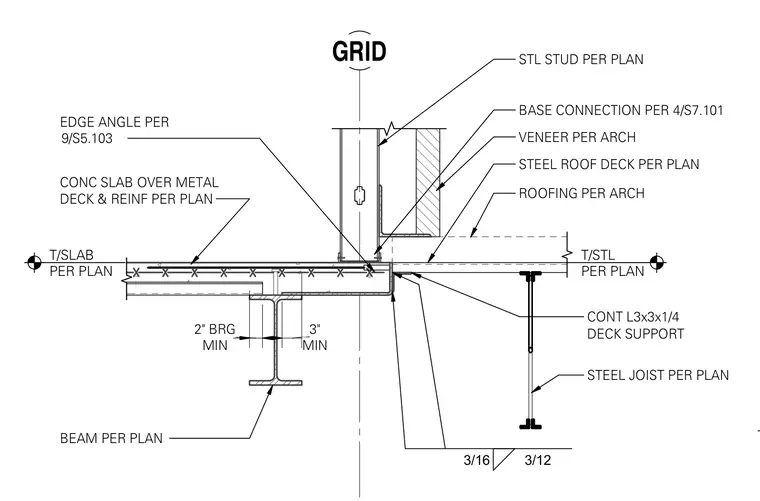

A concrete slab over metal deck bears on a structural steel beam with a minimum two-inch and three-inch bearing width on opposite sides of the grid line. An edge angle per detail 9/S5.103 aligns with the slab edge, supporting exterior wall framing with steel studs and veneer per architectural drawings. A continuous 3x3x1/4 angle provides deck support for the adjacent steel roof deck. The steel roof deck bears on a steel joist positioned per plan.
EDGE ANGLE PER CONC SLAB OVER METAL DECK & REINF PER PLAN GRID T/SLAB PER PLAN 9/S5.103 3/16 3/12 STL STUD PER PLAN BASE CONNECTION PER VENEER PER ARCH 4/S7.101 T/STL PER PLAN STEEL ROOF DECK PER PLAN CONT L3x3x1/4 DECK SUPPORT STEEL JOIST PER PLAN MIN 3" MIN 2" BRG BEAM PER PLAN ROOFING PER ARCH
