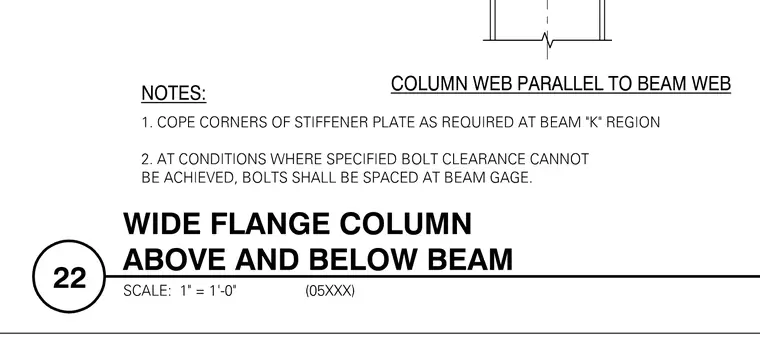

A wide flange column configuration is positioned above and below a beam with the column web parallel to the beam web. Stiffener plates require corner copes at the beam k region. Where specified bolt clearance cannot be achieved, bolts are spaced at the beam gage.
