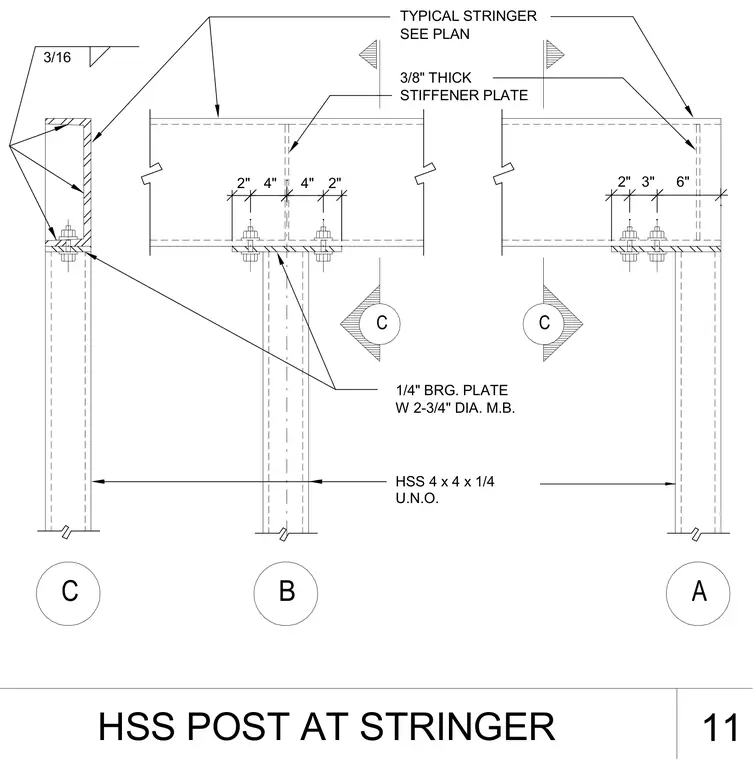

An HSS 4x4x1/4 hollow structural section post supports a typical stair stringer sized per plan. The post connects to the underside of the stringer via a 1/4-inch bearing plate secured with 3/4-inch diameter machine bolts. Three-eighths-inch thick stiffener plates are welded inside the stringer above the post bearing location with three-sixteenths-inch fillet welds. Additional support configurations at grid lines A, B, and C show varying bolt spacings and stiffener placements.
HSS POST AT STRINGER 11 C A B C C TYPICAL STRINGER 2" 3" 6" 4" 2" 4" 2" STIFFENER PLATE 3/8" THICK W 2-3/4" DIA. M.B. 1/4" BRG. PLATE SEE PLAN HSS 4 x 4 x 1/4 U.N.O. 3/16
