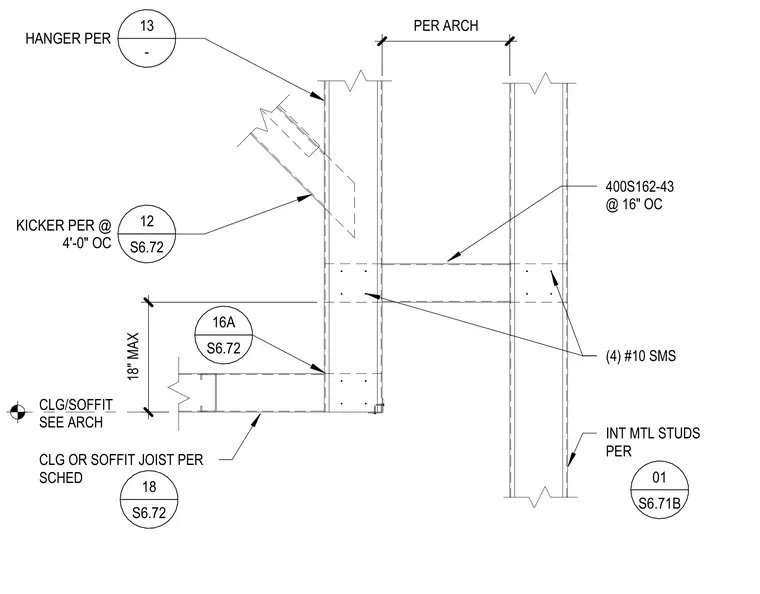

Cold-formed metal framing members including 400S162-43 studs spaced at sixteen inches on center connect to interior metal studs. A diagonal kicker spaced at four feet on center supports the vertical framing. Four number ten sheet metal screws fasten the connections. Hangers and ceiling or soffit joists are coordinated per architectural specifications.
CLG/SOFFIT SEE ARCH (4) #10 SMS CLG OR SOFFIT JOIST PER SCHED 400S162-43 @ 16" OC INT MTL STUDS PER 18" MAX PER ARCH 13 - HANGER PER 12 S6.72 KICKER PER @ 4'-0" OC 18 S6.72 16A S6.72 01 S6.71B
